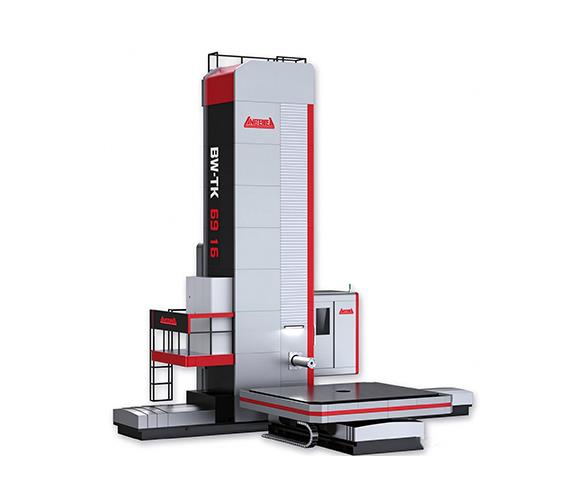

BW-TK69 Series CNC Floor-Type Boring and Milling Machine

Product Overview

The company independently develops unique products while absorbing high-end technology from similar products at home and abroad.

This machine can achieve stepless speed regulation, with three gears: high, medium, and low. It has the characteristics of large transmission ratio, high torque, high resistance, and high speed. Provide ample cutting torque.

Product Features

-Static pressure guide rail

-High rigidity bed body, multiple supports

-Fully enclosed spindle box

-Y-axis nut rotation

-X-axis gear rack drive, can choose dual motor dual gear backlash mechanism, or single motor dual gear backlash mechanism

-The main transmission box moves synchronously with the square slider, featuring high speed, low noise, and high torque

-Equipped with a high-performance imported steel wire rope counterweight balance system

-Double layered design of columns

-Full grinding of bed column guide rail

-Column guide rail with unloading device

-The square slider is in a four sided fully wrapped form and comes with a compensation mechanism

-Can be equipped with a high-pressure center outlet

-Can be equipped with a tool magazine to achieve automatic tool changing function

-Can be equipped with automatic grasping and automatic indexing attachment heads
