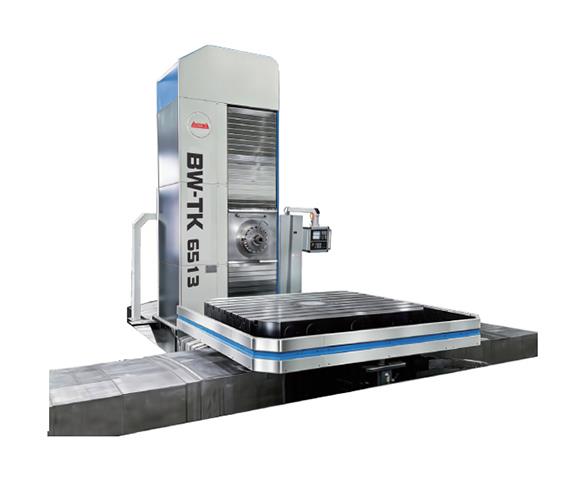

BW-TK65 Series CNC Floor-Type Boring and Milling Machine

Product Overview

This series of machine tools has excellent performance and a wide range of processing techniques. Multiple special accessory milling heads can be selected, which can complete drilling, expanding, boring, groove cutting, and flat milling of medium and large-sized parts in one clamping.

This model is divided into two types, one without a fixed flat rotating disc and the other with a fixed flat rotating disc. This model can also be combined as needed to make it in a head to head form.

Product Features

-The machine tool bed is arranged in a T-shaped pattern, with a high rigidity bed and multiple supports

-Composite guide rail, each with unloading device, can be selected in the form of heavy-duty roller linear guide rail

-Each feed axis is driven by a high-precision preloaded double nut ball screw pair

-Imported steel wire rope counterweight balance

-Double layered design of columns

-The guide rail can be a composite guide rail or a heavy-duty roller linear guide rail, both of which are fully ground

-The rotary worktable is a large rotary bearing

-The rotary gear ring is a ground large-diameter gear ring

-The slewing brake is a hydraulic holding brake

-The rotary transmission is driven by a dual gear ring gear with a backlash mechanism. The backlash mechanism can be selected as dual motor dual gear or single motor dual gear

-Can achieve 360 degree arbitrary angle division

-Can be equipped with a high-pressure center outlet

-Can be equipped with a tool magazine to achieve automatic tool changing function

-Can be equipped with an extended milling head

-Can be equipped with spindle support
