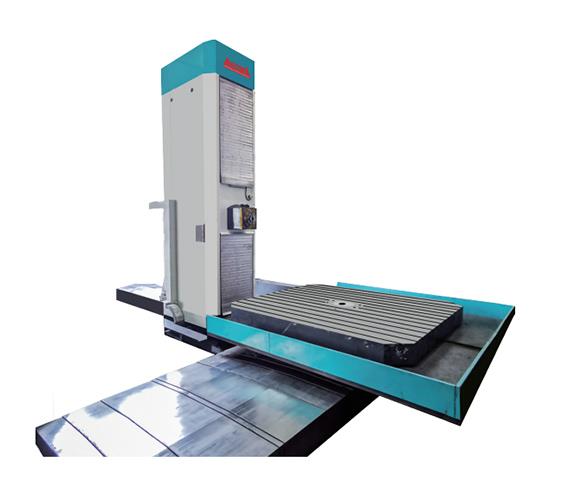

BW-LBT CNC Vertical Hanging Boring and Milling Machining Center

Application Fields

This model can be mainly used for aerospace, energy, molds, high-speed processing, engineering machinery, oil&gas, and general processing.

It is an ideal solution for multi axis high-precision contour machining.

Product Features

-This machine can be designed as a floor standing or planing platform structure

-Hanging in the middle of the column in the spindle box

-High speed, high-precision

-High rigidity bed body, multiple supports

-The X, Y, and Z axes are all in the form of heavy-duty roller linear guides

-Each feed axis is driven by a high-precision preloaded double nut ball screw pair

-The rotary worktable is a large rotary bearing

-The rotary gear ring is a ground large-diameter gear ring

-The slewing brake is a hydraulic holding brake

-The rotary transmission is driven by a dual gear ring gear with a backlash mechanism. The backlash mechanism can be selected as dual motor dual gear or single motor dual gear

-Can achieve 360 degree arbitrary angle division

-Can be equipped with a high-pressure center outlet

-Can be equipped with a tool magazine to achieve automatic tool changing function

-Can be equipped with an extended milling head
